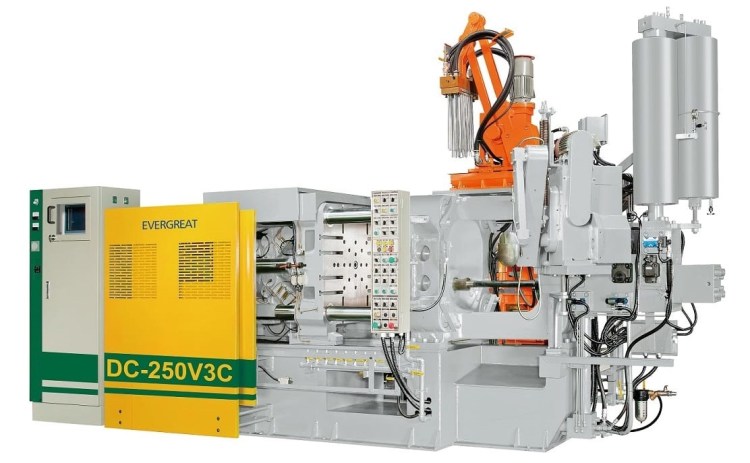

DC-800V3C
800 tons is applicable for V3C series
- Clamping force 800 tons
- Distance between tie-bar 950 x 950 mm
- Max injecting weight 10.7 kg
- Die height 400 – 950 mm
| ITEM | UNIT | VALUE | ||||
|---|---|---|---|---|---|---|
| Basic | Control Unit Shot Unit Multi-stage Injection | PLC + MMI 4 Phases Optional | ||||
| CLAMPING MECHANISM | Clamping Force Die Platen Tie-bar Distance Die Stroke Die Height | ton mm mm mm mm | 800 1432 x 1432 950 x 950 760 400 – 950 | |||
| INJECTION MECHANISM | Injection Force Intensifying Rate Injection Stroke Plunger Tie Penetration Shot Position Injection Pressure Max Injection Velocity (up) Available Plunger Diameter | ton mm mm kg/cm² m/s mm | 63 2.55 680 300 -250 110 – 140 7 Ø80 / Ø90 / Ø100 | |||
| EJECTING MECHANISM | Ejecting Force Ejecting Stroke | ton mm | 36 125 | |||
| CORE SYSTEM | Core no.1 Outlet Core no.2 Outlet Core no.3 Outlet | pt pt pt | 3/4″ x 2 3/4″ x 1 3/4″ x 1 | |||
| CASTING CAPACITY | Plunger Diameter Injection Pressure Casting Area Injecting Volume Injecting Weight | mm kg/cm² cm² cm³ kgs | Ø80 600 – 1200 660 – 1320 2635 6.8 | Ø90 480 – 960 830 – 1660 3340 8.7 | Ø100 385 – 770 1040 – 2088 4120 10.7 | |
| COOLER | Water Inlet Water Outlet Hydraulic Cooler In Hydraulic Cooler Out Die Water Valve (fix) Die Water Valve (mov) Hydraulic Cooler Flow Die Cooler Flow | Rc PT Rc PT Rc PT Rc PT L/min L/min | 1-1/4″ 2-1/2″ 1″ 1″ 3/8″ x 11 3/8″ x 15 100 70 – 150 | |||
| MOTOR | Motor Power Source | kw V | 45 AC220/380 | |||
| MACHINE DIMENSIONS | Size (L x W x H) Weight Hydraulic Oil | mm ton L | 8600 x 3600 x 3100 39 1600 |
Die Platen
