Die Casting Machine

V3C Series | DC-150V3C | DC-250V3C | DC-650V3C | DC-800V3C

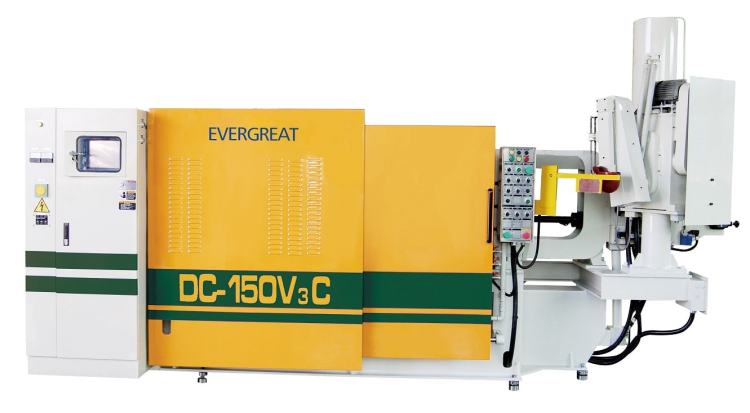

DC-150V3C

	ITEM	UNIT	VALUE
Basic	Control Unit Shot Unit Multi-stage Injection		PLC + MMI 3 Phases X
CLAMPING MECHANISM	Clamping Force Die Platen Tie-bar Distance Die Stroke Die Height	ton mm mm mm mm	150 730 x 730 465 x 465 357 250 – 500
INJECTION MECHANISM	Injection Force Intensifying Rate Injection Stroke Plunger Tie Penetration Shot Position Injection Pressure Max Injection Velocity (up) Available Plunger Diameter	ton mm mm kg/cm² m/s mm	18.2 2.1 355 150 -100 110 – 130 7 Ø45 / Ø50 / Ø60
EJECTING MECHANISM	Ejecting Force Ejecting Stroke	ton mm	7.9 75
CORE SYSTEM	Core no.1 Outlet Core no.2 Outlet Core no.3 Outlet	pt pt pt	1/2″ x 2 1/2″ x 2 (Optional) X
CASTING CAPACITY	Plunger Diameter Injection Pressure Casting Area Injecting Volume Injecting Weight	mm kg/cm² cm² cm³ kgs	Ø45 522 – 1056 118 – 239 362 0.92	Ø50 422 – 856 146 – 296 447 1.16	Ø60 293 – 594 210 – 426 644 1.64
COOLER	Water Inlet Water Outlet Hydraulic Cooler In Hydraulic Cooler Out Die Water Valve (fix) Die Water Valve (mov) Hydraulic Cooler Flow Die Cooler Flow	Rc PT Rc PT Rc PT Rc PT L/min L/min	1″ 2″ 1″ 1″ 3/8″ x 5 3/8″ x 5 40 25 – 50
MOTOR	Motor Power Source	kw V	15 AC220/380
MACHINE DIMENSIONS	Size (L x W x H) Weight Hydraulic Oil	mm ton L	4600 x 1740 x 2300 6 600
