Die Casting Machine

V4N Series | DC-250V4N | DC-420V4N

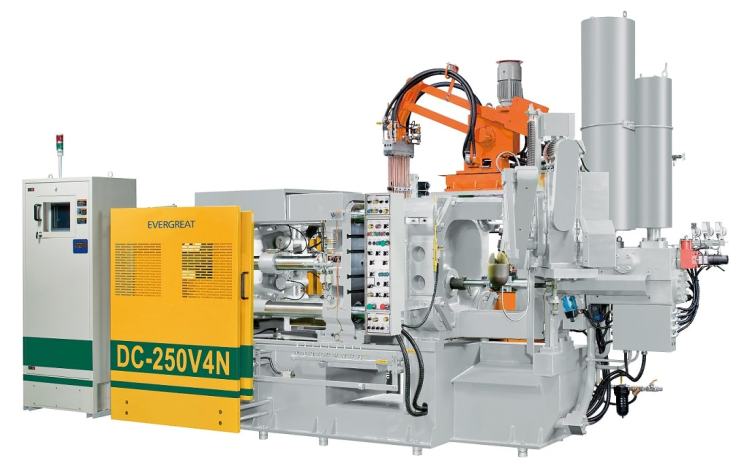

DC-250V4N

250 tons is applicable for V3C / V4N series
  • Clamping force 250 tons
  • Dry injection speed over 6 m/sec

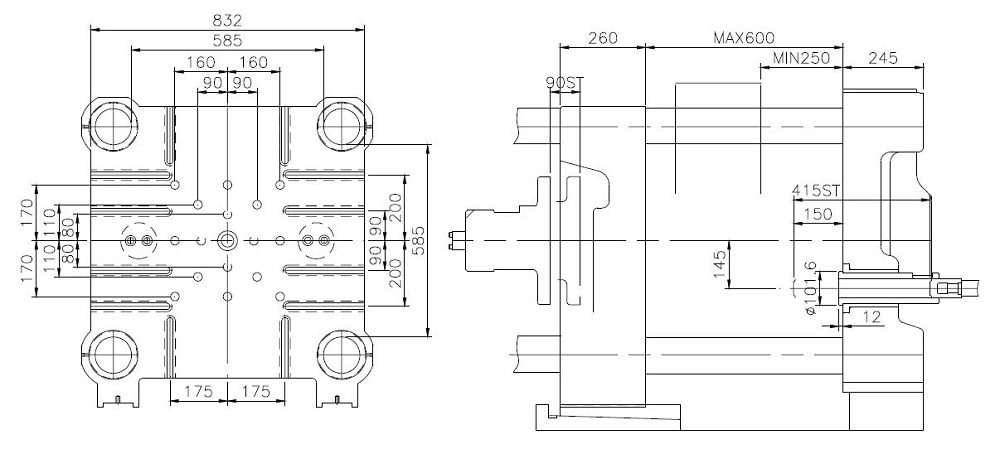

  • Distance between tie-bar 585 x 585 mm
  • Die height 250 – 600 mm
ITEMUNITVALUE
BasicControl Unit

Shot Unit

Multi-stage Injection
PLC + MMI

3 Phases

Optional
CLAMPING MECHANISMClamping Force

Die Platen

Tie-bar Distance

Die Stroke

Die Height
ton

mm

mm

mm

mm
250

890 x 890

585 x 585

435

250 – 600
INJECTION MECHANISMInjection Force

Intensifying Rate

Injection Stroke

Plunger Tie Penetration

Shot Position

Injection Pressure

Max Injection Velocity (up)

Available Plunger Diameter
ton



mm

mm



kg/cm²

m/s

mm
27

2.5

420

160

-145

110 – 140

7

Ø50 / Ø60 / Ø70
EJECTING MECHANISMEjecting Force

Ejecting Stroke
ton

mm
12.3

90
CORE SYSTEMCore no.1 Outlet

Core no.2 Outlet

Core no.3 Outlet
pt

pt

pt
3/4″ x 2

3/4″ x 2 (Optional)

X
CASTING CAPACITYPlunger Diameter

Injection Pressure

Casting Area

Injecting Volume

Injecting Weight
mm

kg/cm²

cm²

cm³

kgs
Ø50

687 – 1374

181 – 363

540

1.4
Ø60

477 – 954

262 – 524

777

2.02
Ø70

350 – 700

357 – 714

1058

2.75
COOLERWater Inlet

Water Outlet

Hydraulic Cooler In

Hydraulic Cooler Out

Die Water Valve (fix)

Die Water Valve (mov)

Hydraulic Cooler Flow

Die Cooler Flow
Rc PT

Rc PT

Rc PT

Rc PT





L/min

L/min
1″

2″

1″

1″

3/8″ x 7

3/8″ x 7

40

30 – 70
MOTORMotor

Power Source
kw

V
22.5

AC220/380
MACHINE DIMENSIONSSize (L x W x H)

Weight

Hydraulic Oil
mm

ton

L
5030 x 1800 x 2040

10.5

800

Die Platen
