TRP Series Four-column Hydraulic Press

  • The hydraulic press is applicable for mass production such as leveling silcon lamination, PVC cropping, inference fit, forming, punching, riveting, bending, burr removing, etc.
  • The four-column design with a linear guide bushing provides smooth operations, and the working area and its height can be adjusted according to the requirement of customers.
  • The safety equipments such as photoelectric sensor provide a secure working environment. Besides, the machine requires both hands to push start-buttons simultaneously.

 PLC control system cooperates with touchscreen panel.

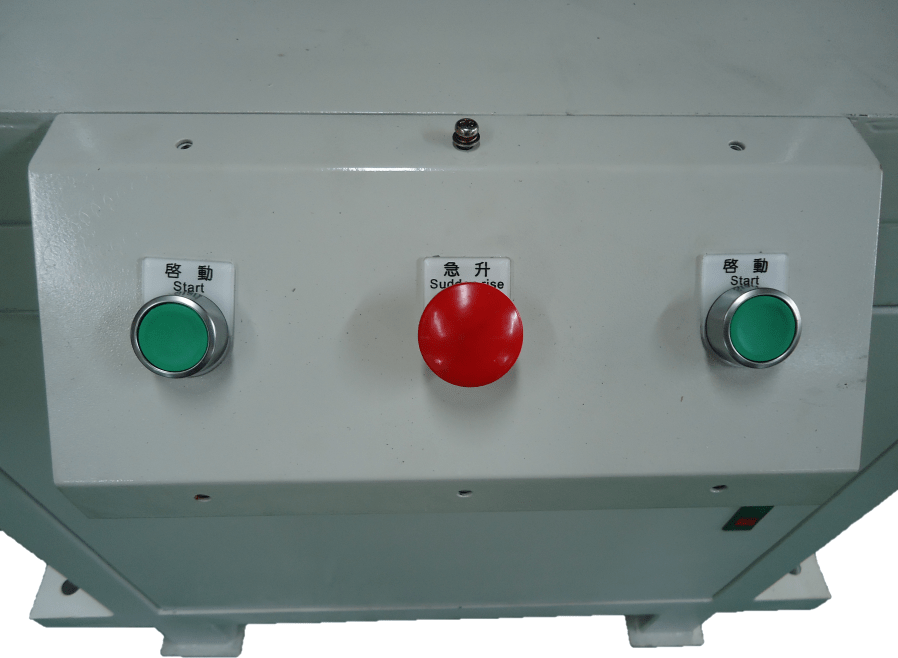

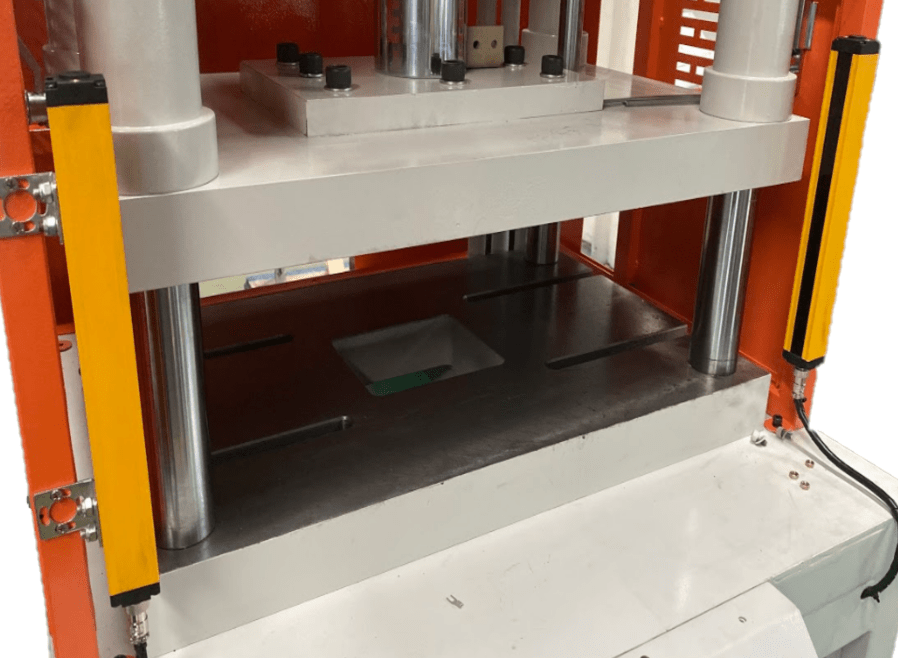

The photoelectric sensor and start-buttons.

Nominal Forceton1020
Output Rangekg3925~102056135~20248
Range of Strokemm250(Adjustable)300(Adjustable)
Decline Speedmm/s9585
Rising Speedmm/s9585
Highest Pressurekgf/cm²125170
Working Pressurekgf/cm²50~12050~165
Oil Pump FlowL/min1420
Max Opening Heightmm450600
Effective Working Areamm504*410600*500
Power SourceVAC3-Phase3-Phase
Motor PowerKW2.253.75
Oil Tank CapacityL8040
Weight for the Machinekg8502300
Operation MethodBoth HandsBoth Hands
