Auto Sprayer

Auto Extractor | Auto Ladle | Auto Sprayer | Lubricating Device

SPV-N Type

UNITSPVN-15SPVN-25SPVN-42
Applicable ModelDC-150DC-250DC-420
# of Nozzlepcs202836
# of Blowing Tubepcs303438
Traveling Strokemm100012001320
Driving Power Sourcekw0.751.51.5
Pneumatic Sourcekg/cm²4 ~ 6 (1″ Port)
Air ConsumptionNL/min110
(Equivalent to 15 HP compressor)

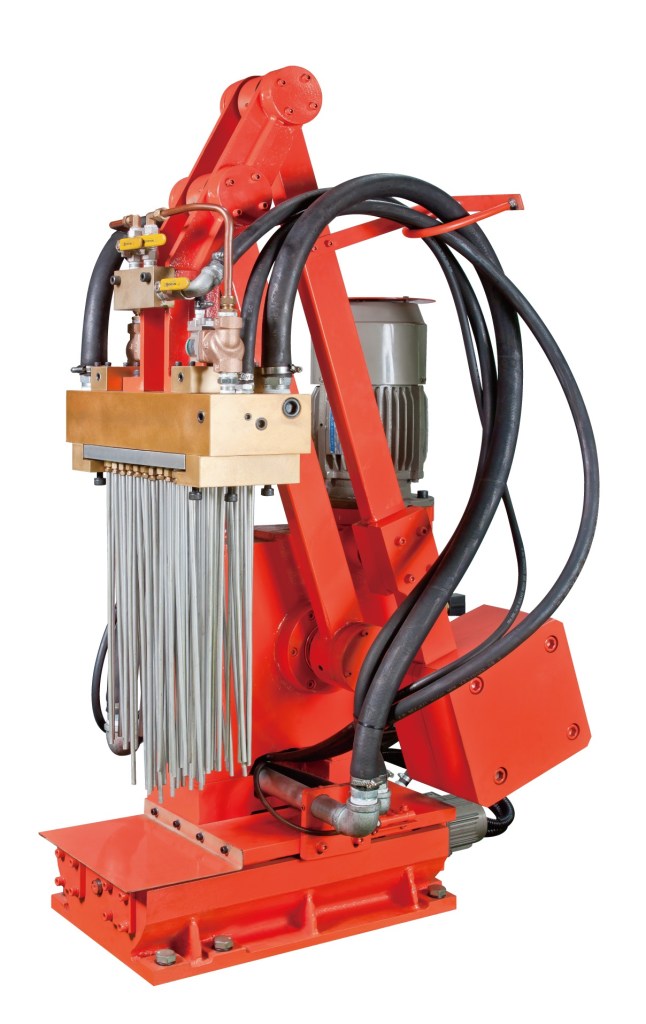

SPV Type

UNITSPV-15SPV-25SPV-42
Applicable ModelDC-150DC-250DC-420
# of Spraying Tubepcs34
# of Blowing Tubepcs14
Traveling Strokemm100012001320
Driving Power Sourcekw0.75
Pneumatic Sourcekg/cm²4 ~ 6 (1″ Port)
Air ConsumptionNL/min140
(Equivalent to 15 HP compressor)
Air Reserve TankLiter250 ~ 300

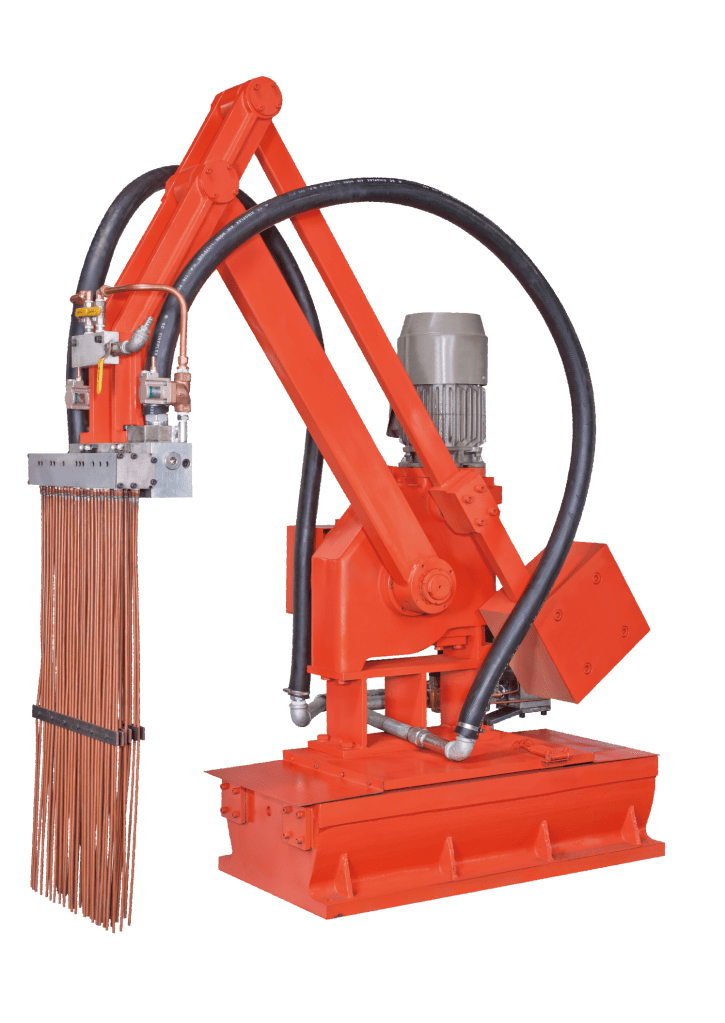

SPV-800 Type

UNITSPV-800
Applicable Model DC-650 / DC-800
# of Spraying Tubepcs 50
# of Blowing Tubepcs 23
Traveling Strokemm 1320
Driving Power Sourcekw1.5
Pneumatic Sourcekg/cm² 4 ~ 6 (1″ Port)
Air ConsumptionNL/min140 (Equivalent to 15 HP compressor)
Air Reserve TankLiter400
